Description

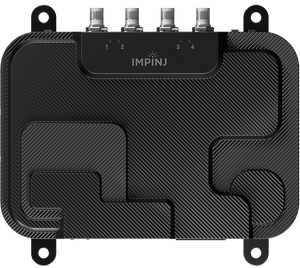

Impinj R700 RAIN RFID Reader
The Impinj R700 RAIN RFID Reader is built for global enterprise deployments that demand high performance, reliability, and scalability. It delivers industry-leading RFID read performance, enterprise-grade security, and modern developer tools that make it easy to build, deploy, and manage custom IoT applications. Designed with developers in mind, the R700 supports a Linux operating system, REST APIs, and native compatibility with industry-standard data formats and protocols such as MQTT. With up to 10× more processing power for on-reader applications, it enables advanced edge computing use cases. When combined with tags based on Impinj M800 series tag chips and with support for the Impinj Gen2X solutions toolbox, the Impinj R700 series advances RAIN RFID performance at dock doors, conveyors, and store exits where items are moving or densely packed.
Available in two versions to meet your deployment needs:
- R700v1 – the proven, widely deployed original model
- R700v2 – the next-generation model with enhanced processing power and memory
| R700 Series | ||
|---|---|---|
|
Specifications |
R700v1 |
R700v2 |
| Processor | Dual-Core 1 GHz Cortex A7 | Dual-Core 1 GHz Cortex A53 |
| CAP Space | 256 MB | 768 MB |
| Flash | 1 GB | 1 GB |
| RAM | 1 GB, DDR3L 800 MHz | 1 GB, LPDDR4 1.6 GHz |
| Linux Operating System | 5.10 kernel (32-bit) | 6.6 kernel (64-bit) |
The latest revision, R700v2, includes major internal upgrades to support more demanding enterprise applications. It features a dual-core 1 GHz 64-bit ARM A53 processor, runs a 64-bit Linux 6.6 operating system, and provides an expanded 768 MB Customer Application Partition (CAP), enabling larger, more complex on-reader applications and future-ready performance. R700v2 retains the same industry-leading RFID performance and mechanical design as R700v1, while requiring PoE+ power and R700 firmware version 10.0 or later. R700v2 models are shipping now.
Note: Manufacturing of R700v1 will be discontinued in 2026, with continued firmware updates and support for existing deployments.
Product Overview — Impinj R700 RAIN RFID Reader
Data Sheet — Impinj R700 RAIN RFID Reader
Quick Start Guide — Impinj R700 RAIN RFID Reader
Get expert help selecting the right RFID reader. Check out our reader guide or chat with a specialist.
What's included?
- Impinj R700 RAIN RFID Reader Unit
- Removable Mounting Brackets
- One Year Standard Limited Warranty (Two, Three, or Four Year Extended Warranties Available)
- PoE Injector & US Line Cord, if selected above (Please note that using a non-manufacturer approved power supply voids the warranty)
Why buy this reader?
Invest in the Impinj R700 to enable fast, accurate RFID tracking with enterprise-grade security, scalable Linux-based edge computing, and support for standard IoT protocols like REST and MQTT. With the upgraded R700v2, you get enhanced 64-bit processing power and expanded memory to run larger on-reader applications and future-proof your RFID infrastructure.
Features
- Industry-Leading Performance: Delivers industry-leading sensitivity, powerful edge processing, and high-speed network connectivity
- Advanced Gen2X Support: Support for the Impinj Gen2X solutions toolbox which strengthens existing solutions and enables new enterprise and consumer use cases
- Simplified Edge Deployments: Streamlines RAIN RFID deployments with increased on-reader memory and the Impinj IoT Devie Interface
- Intelligent On-Reader Processing: Enables intelligent, on-reader, RAIN tag-processing algorithms
- Enterprise-Grade Security & Flexibility: Provides enterprise-grade reliability and security, and the flexibility to customize with on-reader applications
- Seamless IoT Integration: Easily connects IoT applications to configure and control devices, and to consume RAIN data, with native support for MQTT
- Rugged Industrial Design: Ruggedized cast aluminum enclosure that withstands shock
- High-Speed Networking: Gigabit Ethernet connectivity prevents data bottlenecks and lowers latency
- Deployment Versatility: Provides versatility with support for USB drives, Wi-Fi adapters, and support for up to 32 antenna with the optional Impinj R700 Antenna Hub
Certified Regions and Geographies
The R700 is available for purchase and operation in the United States, Australia, Brazil, Canada, China, Hong Kong, Indonesia, Malaysia, Mexico, New Zealand, Singapore, South Africa, South Korea, Taiwan, Thailand, Uruguay, Vietnam, and the Philippines (FCC & GX, IPJ-R700-341 or IPJ-R700-341-B), the European Union, India, Saudi Arabia, and the UAE (ETSI, IPJ-R700-24 or IPJ-R700-241-B), and Japan (JP, IPJ-R700-441 or IPJ-R700-441-B).
Impinj Extended Warranty Plans
Impinj Extended Warranty plans offer continued coverage beyond the standard limited one-year warranty. These warranty plans extends the limited hardware warranty for an additional one (1), two (2), or three (3) years after the expiration of the initial limited hardware warranty. They extend all hardware warranty benefits and include access to major and minor firmware maintenance releases.
NOTE: Impinj Extended Warranties must be purchased at least 90 days prior to the expiration of standard limited one-year warranty. Contact us for details.
Recommended Professional Services
At atlasRFIDstore, we offer a full range of professional services to ensure that your RFID hardware runs at it's optimal capacity. Designed specifically for RFID readers, the following professional services will reduce the amount of time it takes to get your reader ready for use.
- Reader Setup and Configuration Service | Remote Assistance Post-Shipment
- Middleware, Firmware, or License Installation Service | Pre-Shipment
- Middleware Configuration Service | Pre-Shipment
Contact us today for more information.
| Product Type: | Fixed Reader |
|---|---|
| ELECTRICAL: | |
| Air Interface Protocol: | EPCglobal UHF Class 1 Gen 2v2 (ISO 18000-63) Impinj Gen2X™ Protocol and Application Layer Enhancements |
| Operating Frequency: | UHF (865-928 MHz), Region Dependent |
| Transmit Power: | +30 dBm (PoE), +33 dBm (PoE+) |
| Max Receive Sensitivity: | -93 dBm |
| Max Read Distance: | Not Published |
| Max Read Rate: | Up to 1,100 Reads per Second |
| Data Interface: | Ethernet (RJ45 ), USB |
| GPIO: | 2 In, 3 Out Optically Isolated |
| Power Source: | PoE (802.3af), PoE+ (802.3at) with LLDP for Power Negotiation, R700v2 Model Requires PoE+ |
| MECHANICAL: | |
| Antenna Ports: | 4 RP-TNC Female Ports (Connects to RP-TNC Male), Expandable to 32 Antennas with Impinj R700 Antenna Hub |
| Dimensions (Without Brackets): | 213.36 x 149.86 x 30.48 mm (8.4 x 5.9 x 1.2 in) |
| Dimensions (With Bracket): | 213.36 x 187.96 x 30.48 mm (8.4 x 7.4 x 1.2 in) |
| Weight: | 0.96 kg (2.12 lbs) |
| ENVIRONMENT: | |
| IP Rating: | IP 50 |
| Operating Temperature: | -4°F to 122°F (-20°C to 50°C) |
| APPLICATION INTERFACE: | |
| Host API: | Impinj IoT Device Interface or REST API |
| Demo Software: | ItemTest |
