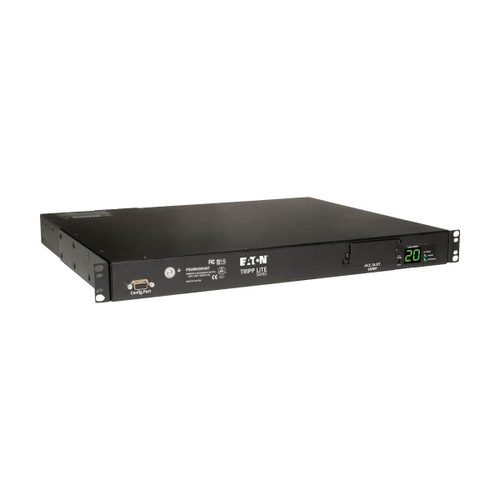

Eaton Tripp Lite PDUMH20HVATNET 3.8kW Switched ATS PDU | 8 C13 / 2 C19 Outlets | 1U Rack-Mount

Achieve uninterrupted power for your vital single-corded network devices with the Eaton Tripp Lite PDUMH20HVATNET 3.8kW Switched ATS PDU. You no longer have to worry about power interruptions as this advanced automatic transfer switch PDU seamlessly shifts between primary and secondary power sources within milliseconds, ensuring continuous operation. With individually controllable output receptacles and a built-in network interface, you gain precise control and real-time monitoring over your equipment. Its 1U rack-mount design and 10 outlets (8 C13 switched / 2 C19 unswitched) make it ideal for high-density rack environments, providing reliable power distribution and redundancy.

Monitor and manage your power infrastructure effortlessly from anywhere with the Java-free LX Platform HTML5-based network interface. This intelligent system provides full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet, or SSH, supporting 10/100 Mbps auto-sensing for optimal Ethernet communication. Designed for flexibility, it supports fault-tolerant hot-swappable UPS protection and fully redundant UPS protection when connected to separate UPS systems, even accommodating advanced ATS configurations with separate mains circuits, backup generators, or diverse utility power grid feeds. With two included 3.7 m (12 ft) C20 input cables and plug-lock retention sleeves, deployment is secure and straightforward.

• Switch, Metered PDU with ATS Support
• Set of 2 C19 to C20 12 ft. / 3.7m power cables
• Plug-lock cable retention sleeves
• User manual with warranty information
• 2-year limited warranty

Ensure uninterrupted power for your vital single-corded network devices with the Eaton Tripp Lite PDUMH20HVATNET, featuring a 3.8kW Switched ATS PDU that automatically transfers between redundant power sources in milliseconds. This innovative PDU offers 10 outlets (8 C13 switched / 2 C19 unswitched), individually controllable outputs via a Java-free LX Platform HTML5 network interface, and flexible compatibility with various power configurations for comprehensive, remote power management and fault-tolerant operation.

• High-Availability Power: 3.8kW single-phase switched automatic transfer switch PDU with dual 200-240V C20 inlets and 8 C13 / 2 C19 outlets
• Seamless Power Redundancy: Provides redundant A/B power options for single-corded network devices with ultra-fast 2-7 millisecond transfer times
• Intelligent Power Management: Onboard ATS processor constantly evaluates power quality to prevent transfer to an unstable secondary source
• Remote Control and Monitoring: Built-in LX Platform HTML5-based network interface allows full remote access for status monitoring and email notifications via secure web browser, SNMP, telnet, or SSH
• Individual Outlet Control: Eight individually switched C13 outlets enable real-time or programmable power control and user-specified alarm thresholds
• Comprehensive Connectivity: Supports 10/100 Mbps auto-sensing Ethernet, HTTP, HTTPS, SMTP, SNMPv1/v2/v3, FTP, DHCP, and NTP protocols
• Enhanced Security and Compliance: TAA compliant, features secure web access, and supports optional EnviroSense2 modules for environmental monitoring (sold separately)
• Robust Design: 1U rack-mount form factor, durable metal construction, and includes Plug-lock output power cable retention sleeves to prevent accidental disconnections
• Precise Power Monitoring: Front panel 2-digit display reports total PDU output current in amps, with LEDs indicating power availability per input and output
• Flexible UPS Integration: Enables fault-tolerant hot-swappable UPS protection with a single UPS, or fully redundant UPS protection when connected to separate UPS systems
• Ideal For: Server rooms, data centers, network closets, and any IT environment requiring advanced power redundancy, remote management, and individual outlet control for mission-critical equipment
