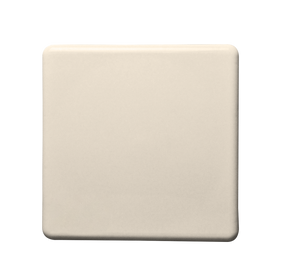

Vulcan RFID VUL-262006/TRH/A/K (RHCP) Outdoor RFID Antenna (FCC)
The Vulcan RFID VUL-262006/TRH/A/K (RHCP) Outdoor RFID Antenna (FCC) is a circularly polarized RFID antenna that operates at 9 dBic gain, covers 63 x 63 degrees beamwidth, and is an excellent choice for passive UHF RFID applications in the FCC band of 902-928 MHz. This antenna is suited for both indoor and outdoor use with its IP67 rating. Measuring in at 12x12 inches, the Vulcan RFID VUL-262006 is perfect for applications such as parking gates, overhead race timing trusses, distribution center yards, and more outdoor installations. It comes with a fixed RP-TNC female connector on the back plate and 4 threaded mounting studs.
Data Sheet — Vulcan RFID VUL-262006/TRH/A/K (RHCP) Outdoor RFID Antenna (FCC)
Need help selecting the right antenna? Check out our antenna guide.
What's included?
- Vulcan RFID VUL-262006/TRH/A/K (RHCP) Outdoor RFID Antenna Unit
- Fixed RP-TNC Female Connector
Why buy this antenna?
The Vulcan RFID VUL-262006/TRH/A/K (RHCP) Outdoor RFID Antenna (FCC) is a 12x12 inch, IP 67 rated circularly polarized RFID antenna operating at 902-928 Mhz FCC with 9 dBic gain and a fixed RP-TNC female connector.
Features
- High-performing UHF RFID antenna.
- UV resistant radome.
- IP 67 rated.
- Right hand circularly polarized.
- Powerful 9 dBic gain.
Information
We can supply you with ANY length custom cable with ANY type of connectors. If you don't see the cable you need, please contact us so we can assist you.

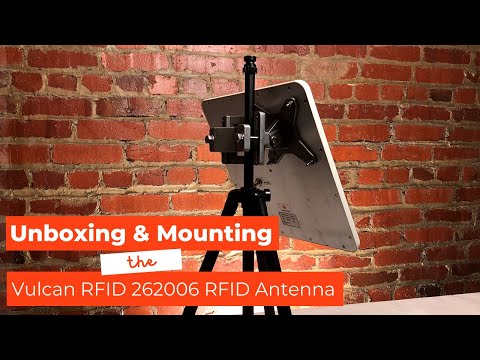

Video
| Product Type: | Antenna |
|---|---|
| ELECTRICAL: | |
| Operating Frequency: | FCC (902-928 MHz) |
| Polarization: | Right hand circular |
| Gain: | 9.0 dBic (min), 9.0 dBil (max) |
| Max Read Distance: | Not published |
| Elevation Beamwidth: | 63° |
| Azimuth Beamwidth: | 63° |
| MECHANICAL: | |
| Connector Type: | RP-TNC female (connects to RP-TNC male) |
| Cable: | Not included |
| Mounting: | 4 threaded studs |
| Dimensions: | 305 x 305 x 25 mm (12 x 12 x 0.98 in) |
| Weight: | 1.2 kg (2.6 lbs) |
| ENVIRONMENT: | |
| IP Rating: | IP 67 |
| Operating Temperature: | -55° to +71°C (-67° to +159.8°F) |
