Description

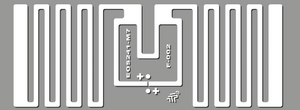

Tageos EOS-241 RFID Paper Tag | M730
Tageos EOS-241 RFID Paper Tag | M730
The Tageos EOS-241 is a small Gen2 UHF RFID Paper Tag designed to meet retail and logistics item-level tagging needs. With the unique design, the EOS-241 is more environmentally friendly with no PET or chemicals, and 50% less glue. The EOS-241 allows retailers and suppliers to enable complete item-level visibility at the most competitive tag price. This tag comes standard with the Impinj M730 integrated circuit which provides high performance, fast inventory capability, and advanced features for next-generation, universal RAIN RFID tags. It lends itself to solutions that include high-speed inventory counting, loss prevention with frictionless self-checkout, and embedded tagging with seamless product returns.
Data Sheet — Tageos EOS-241 RFID Paper Tag | M730
Need help selecting the right tag? Check out our tag guide.
Why buy this tag?
The Tageos EOS-241 Apparel Tag is suitable for apparel applications with high volume apparel RFID tagging and labeling needs. The superior read rate paired with the compact antenna size makes this tag the ideal solution for retail and logistical applications such as: inventory counting, loss prevention, and product returns. The EOS-241 Apparel Tag is certified for use with the following top vendors of printer-encoders: Zebra Technologies, Toshiba, and Sato.
Features
- Impinj connected tag.
- ARC Certified in categories: F, G, N, O, Q, B1, W2, W5, W6.
- Thinner labels and tags - no inlay bump.
- EPC Global Class 1 Gen2 (ISO18000-6C).
- More environmentally friendly tags - no PET or chemicals, 50% less glue.
- Complies with ISO 9001:2015 Quality Management System and ISO 14001:2015 Environmental Management System, as well as Environmental Directives RoHS and REACH.
- Ready-to-use labels certified for use with the following top vendors of printer encoders: Zebra Technologies, Toshiba, and Sato.
- Common applications: apparel, inventory visibility, item level tagging, pharma and healthcare, supply chain management.
| ELECTRICAL: | |
|---|---|
| Air Interface Protocol: | EPC Global Class 1 Gen2 (ISO18000-6C) |
| Operating Frequency: | Global (860–960 MHz) |
| IC Type: | M730 |
| Memory: | EPC 128 Bits, User 0 Bits, TID 96 Bits |
| EPC Memory Content: | Not guaranteed unique |
| Max Read Distance: | Up to 10 m (32 ft) |
| Applicable Surface Materials: | Cardboard, glass, plastic |
| ARC Approved Categories (NXP Ucode 7): | F, G, N, O, Q, B1, W2, W5, W6 |
| MECHANICAL: | |
| Tag Form Factor: | Paper tag |
| Tag Materials: | Printable white paper (Thermal Transfer) (Face), aluminum (antenna) |
| Recommended Ribbon: | Wax-Resin |
| Attachment Method: | Solvent-free permanent acrylic adhesive |
| Dimensions: | 44 x 18 mm (1.73 x 0.71 in) |
| Weight: | < 1.125 g |
| ENVIRONMENT: | |
| Operating Temperature: | -40° to +85°C (-40° to +185°F) |
