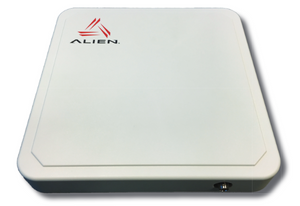

Alien ALR-8698 RFID Antenna

SKU:
ALR-8698

Alien

UPC:
686696913277
Product Type:
Antenna
ELECTRICAL:

Operating Frequency:
Global (865 - 928 MHz)
Polarization:
Circular
Gain:
11.0 dBic (US), 10.0 dBic (EU)
Max Read Distance:
Not Published
Elevation Beamwidth:
70°
Azimuth Beamwidth:
70°
MECHANICAL:

Connector Type:
RP-TNC female (connects to RP-TNC male)
Cable:
Not Included
Mounting:
100mm VESA Mounting Holes
Dimensions:
258 x 258 x 36 mm (10.16 x 10.16 x 1.42 in)
Weight:
0.91 kg (2 lbs)
ENVIRONMENT:

IP Rating:
IP 67
Operating Temperature:
-40° to +70° C (-40° to +158° F)
fbt-product:
2849
fbt-product:
1760
fbt-product:
1238
atc-product:
1665
atc-product:
1207
atc-product:
2958
atc-product:
2845
View Full Description View Items Frequently Bought Together
MSRP: $179.00
$152.00
(You save $27.00 )
Adding to cart… The item has been added

Need a Quote?

Frequently Bought Together

Please choose options for all selected products

  • Choose Options
Specs

Description

Alien ALR-8698 RFID Antenna

The Alien Technology ALR-8698 is a high-performance, worldwide, circular-polarized antenna for use in demanding application. The 11 dBic US/10 dBic EU can be used with all fixed Gen2 readers on the market. Application environments include warehouses, distribution centers, airports and hospitals, transit terminals, and conveyor belts.

Data Sheet  Alien ALR-8698 RFID Antenna


Need help selecting the right antenna? Check out our antenna guide.

What's included?

  • Alien ALR-8698 Antenna Unit

Why buy this antenna?

Low-profile and able to be used indoors or outdoors, the ALR-8698 antenna has one of the highest gains in the industry. With a gain of 11 dBic and extremely low VSWR and axial ratio, this antenna is ideal for applications that require long read range.

Features

  • Very high gain.
  • Extremely low VSWR and axial ratio.
  • Wide band antenna for worldwide applications.
  • Low Profile.
  • Weather and UV resistant radome (IP67).
  • RoHS EU 2002/95/EC compliant.
  • Reverse polarity TNC connector.
  • Applications: warehouses, distribution centers, airports and hospitals, transit terminals, and conveyor belts.

Compatibility

  • Alien mid-range readers

Information

Note: The Alien ALR-8698 RFID Antenna is ONLY certified for use with the Alien mid-range readers.

We can supply you with ANY length custom cable with ANY type of connectors. If you don't see the cable you need, please contact us so we can assist you.

Product Type: Antenna
ELECTRICAL:
Operating Frequency: Global (865 - 928 MHz)
Polarization: Circular
Gain: 11.0 dBic (US), 10.0 dBic (EU)
Max Read Distance: Not Published
Elevation Beamwidth: 70°
Azimuth Beamwidth: 70°
MECHANICAL:
Connector Type: RP-TNC female (connects to RP-TNC male)
Cable: Not Included
Mounting: 100mm VESA Mounting Holes
Dimensions: 258 x 258 x 36 mm (10.16 x 10.16 x 1.42 in)
Weight: 0.91 kg (2 lbs)
ENVIRONMENT:
IP Rating: IP 67
Operating Temperature: -40° to +70° C (-40° to +158° F)
