Description

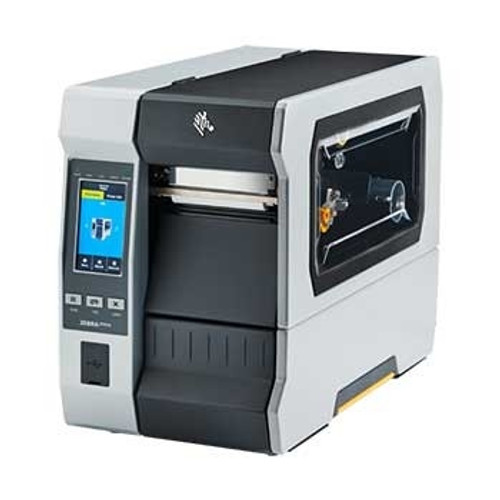

Zebra ZT610 Industrial Barcode Label Printer (203/300/600 dpi, 4 Inch Print Width, Thermal Transfer/Direct Thermal, USB, Serial, Gigabit Ethernet, Bluetooth 4.1, USB Host, Wi-Fi 5)
When your industrial operations demand precision and reliability in harsh environments, the Zebra ZT610 industrial barcode printer delivers exceptional performance with advanced capabilities. This rugged thermal printer features an all-metal construction designed for 24/7 operations, offering both thermal transfer and direct thermal printing at resolutions up to 600 dpi for micro-label applications as small as 3 mm high. With print speeds up to 14 ips (356 mm per second) and a maximum print width of 4.09 inches (104 mm), the ZT610 handles high-volume production demands while maintaining superior print quality.
The intuitive 4.3-inch full-color touchscreen display provides clear status visibility and easy navigation, while Zebra's Link-OS platform and DNA suite deliver advanced connectivity and device management capabilities. Standard connectivity includes USB 2.0, RS-232 Serial, Gigabit Ethernet, and Bluetooth 4.0, with two open communication slots for future expansion. Whether you're printing work-in-process labels, product identification, compliance labels, or precision circuit board components, the ZT610 combines durability, precision, and user-friendly operation to keep your operations running smoothly.
Note: The Zebra ZT610 Printer comes standard with USB, Serial, Gigabit Ethernet, Bluetooth 4.1, USB Host, and optional 802.11ac connectivity. This industrial printer is NOT RFID capable.
Configuration Options
| ZT600 Series | ||
|---|---|---|
|
Product |
Print Width |
Print Media |
| Zebra ZT610 Industrial Barcode Label Printer | 20 - 114 mm (0.79 to 4.5 in) | Direct Thermal and Thermal Transfer Barcode Labels |
| Zebra ZT610 Industrial RFID Barcode Label Printer | 25.4 - 108 mm (1.0 to 4.25 in) | RFID Labels |
| Zebra ZT620 Industrial Barcode Label Printer | 51 - 180 mm (1.0 to 7.1 in) |
Direct Thermal and Thermal Transfer Barcode Labels |
| Zebra ZT620 Industrial RFID Barcode Label Printer | 51 - 171 mm (2.0 to 6.75 in) | RFID Labels |
Data Sheet — Zebra ZT610 Industrial Barcode Label Printer
Get expert help selecting the right barcode label printer. Check out our printer guide or chat with a specialist.
What's included?
- Zebra ZT610 Industrial Barcode Label Printer Unit
- US Power Supply
- One Year Standard Warranty (Three Year Comprehensive Warranty Available)
Why buy this printer?
When your business demands reliable barcode label printing with uncompromising durability, the Zebra ZT610 4-inch barcode label printer delivers 24/7 performance with all-metal construction that withstands extreme temperatures, dust, and moisture while virtually eliminating operational downtime. This high-resolution barcode label printer offers exceptional precision with up to 600 dpi printing for micro barcode labels as small as 3 mm, making it ideal for circuit boards and miniature components, while the intuitive 4.3-inch full-color touchscreen and color-coded guided media paths streamline daily operations and reduce training requirements.
Features
- Print Specifications: Up to 14 ips speed, 104 mm max width, 203-600 dpi resolution
- Advanced Resolution: Optional 600 dpi printing for micro labels as small as 3 mm
- Rugged Construction: All-metal frame with bi-fold cover and clear viewing window
- User Interface: 4.3-inch full-color touchscreen with intuitive icon menu system
- Print Methods: Supports both thermal transfer and direct thermal printing
- Connectivity: USB 2.0, Serial, Gigabit Ethernet, Bluetooth 4.0 standard
- Smart Management: Link-OS platform with Zebra DNA software suite integration
- Memory: 1 GB RAM and 2 GB Flash for complex applications
- Media Handling: Side-loading design with dual transmissive and reflective sensors
- Expandability: Optional Wi-Fi, rewind, cutter, and applicator interface
- Dimensions: 505 x 268 x 396 mm (19.9 x 10.6 x 15.6 in)
- Weight: 22.7 kg (50 lbs) for stable industrial operation
- Energy Efficiency: ENERGY STAR qualified with auto-detectable 90-265 VAC power
- Ideal For: Manufacturing, healthcare, transportation, retail, and precision micro-labeling applications
Zebra OneCare Support with Comprehensive Coverage
Zebra OneCare Essential delivers the fully featured comprehensive coverage you need to maximize uptime and value of your Zebra device. This service sets the industry bar for service and support, with features that include coverage for accidental damage and normal wear and tear, technical support during your local business hours, access to software updates, and a 3-day turnaround time on repairs.
NOTE: This service is available for purchase within 30 days of your equipment purchase. Purchase of any Zebra OneCare Support Service voids the included standard one-year warranty, resulting in a coverage of three (3) years total. Contact us today for more detailed information.
Recommended Accessories
The following accessories are available for the Zebra ZT610 Industrial Barcode Label Printer.
Shop Now
Contact Us To Order
- Zebra USB Cables
- Zebra Charging and Power Adapters
- Zebra Cables
- Zebra Spare Batteries
- Zebra Printheads
- Zebra Regional Power Supplies
Looking to order the Zebra ZT610 accessories above that are not listed online? Get in touch to place your order.
| Product Type: | Printer |
|---|---|
| ELECTRICAL: | |
| Air Interface Protocol: | Not applicable |
| Operating Frequency: | Not applicable |
| Data Interface: | USB 2.0, RS-232 Serial, Gigabit Ethernet, Bluetooth 4.1, USB Host |
| Power Source: | Power Supply: Auto-detectable (PFC Compliant) 90-265 VAC, 47-63 Hz, rated at 250 Watts |
| MECHANICAL: | |
| Resolution: | 203 dpi, 300 dpi, or 600 dpi |
| Print Width: | 104 mm (4.09 in) |
| Max Outer Diameter: | 203 mm (8 in) |
| ID Core Options: | 76 mm (3 in) |
| Dimensions: | 505 x 268.2 x 395.68 mm (19.88 x 10.56 x 15.58 in) |
| Weight: | 22.7 kg (50 lbs) |
| ENVIRONMENT: | |
| Operating Temperature: | 5° to 40°C (40° to 104°F) |
| APPLICATION INTERFACE: | |
| Host API: | ZPL, ZPL II |
