Description

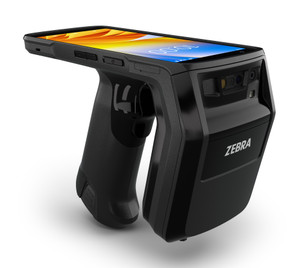

Zebra TC22R Integrated Handheld RFID Reader
If you're struggling with inefficient asset tracking and inventory management in competitive markets, the Zebra TC22R Integrated Handheld RFID Reader delivers the solution you need. This lightweight, all-touch Android device combines industry-leading performance with ergonomic design, enabling your team to capture data from up to 1,300 tags per second while reducing fatigue during extended use. With its integrated NFC reader, 16 MP camera, and robust barcode scanning capabilities, the TC22R streamlines everything from inventory cycle counting to mobile POS applications.
Built for demanding environments, this handheld RFID scanner features Wi-Fi 6E connectivity, Bluetooth 5.2, and a 6.0-inch Full HD+ touchscreen display for intuitive operation. The rugged design meets IP65 sealing standards and survives multiple 5-foot drops, while the 7,000 mAh battery with PowerPrecision+ technology ensures all-day productivity. Whether you're managing retail inventory, tracking manufacturing assets, or handling logistics operations, the TC22R integrated reader provides the real-time visibility and simplified deployment your business demands.
Configuration Options
| Sled Variations | ||
|---|---|---|
|
Model |
Features |
Product Code |
| TC22R Sled | Does not require an adapter due to its integrated Zebra mobile computer with 6GB RAM, 64 GB storage, Wi-Fi 6E and Bluetooth 5.2. An integrated imager provides 1D and 2D scanning functionality. | TC2205-0G1250SS-US, TC2205-0G1250SS-FT |
| RFD40 Standard | Connects directly through eConnex adapters. | RFD4030-G00B700-US |
| RFD40 Premium | Connects directly through eConnex adapter or wirelessly with Bluetooth 5.3 capability. NFC tap-to-pair capability. Wi-Fi 6 enables easy OTA device management. | RFD4031-G00B700-US |
| RFD40 Premium Plus | Connects directly through eConnex adapter or wirelessly with Bluetooth 5.3 capability. NFC tap-to-pair capability. Wi-Fi 6 enables easy OTA device management. An integrated imager provides 1D and 2D scanning functionality. | RFD4031-G10B700-US |
Data Sheet — Zebra TC22R Integrated Handheld RFID Reader
Get expert help selecting the right reader. Check out our reader guide or chat with a specialist.
What's included?
- Zebra TC22R Integrated Handheld RFID Reader Unit
- One Year Standard Manufacturer Warranty (Three Year Comprehensive Warranty Available)
- USB Power Supply and Cable, if selected above (Please note that using a non-manufacturer approved power supply voids the warranty)
Why buy this reader?
The TC22R stands out as the only integrated handheld RFID reader that combines industry-leading 1,300 tags per second read rate with true all-day comfort in a lightweight Android device. Unlike competing solutions that require separate components, this all-in-one reader integrates RFID, barcode scanning, NFC, and high-resolution cameras in a single rugged device that's backed by Zebra's RFID technology.
Features
- RFID Performance: Reads up to 1,300 tags per second with 40 ft range using integrated antenna
- Ergonomic Design: Lightweight 569 g design reduces fatigue during extended inventory operations
- All-Touch Interface: 6.0-inch Full HD+ color touchscreen with 450 nits brightness
- Advanced Connectivity: Wi-Fi 6E, Bluetooth 5.2, and USB 3.1 Type-C for flexible deployment
- Multi-Function Scanning: Integrated SE4710 barcode scanner and NFC reader for versatile data capture
- High-Resolution Camera: 16 MP rear and 5 MP front cameras for documentation and verification
- All-Day Battery: 7,000 mAh Li-Ion battery with PowerPrecision+ real-time metrics
- Rugged Construction: IP65 sealing, multiple 5 ft drop rating, and -10°C to +50°C operation
- Android Platform: Hexa-core processor with 6 GB RAM and mainstream MDM support
- Ideal For: Retail inventory, manufacturing tracking, logistics verification, and government asset management
Zebra OneCare Support with Comprehensive Coverage
Zebra OneCare Essential delivers the fully featured comprehensive coverage you need to maximize uptime and value of your Zebra device. This service sets the industry bar for service and support, with features that include coverage for accidental damage and normal wear and tear, technical support during your local business hours, access to software updates, and a 3-day turnaround time on repairs.
NOTE: This service is available for purchase within 30 days of your equipment purchase. Purchase of any Zebra OneCare Support Service voids the included standard one-year warranty, resulting in a coverage of three (3) years total. Contact us today for more detailed information.
Recommended Accessories
The following optional and replacement accessories are available for the Zebra TC22R Integrated Handheld RFID Reader.
Shop Now
Contact Us To Order
- Zebra Single Slot Charge Cradles
- Zebra Multi-Slot Charge Cradles
- Zebra Multi-Slot Charge & Communication Cradle
- Zebra Charge Cradle Cup
- Zebra Charge & Communication Cradle Cup
| Product Type: | Handheld Reader |
|---|---|
| ELECTRICAL: | |
| Air Interface Protocol: | EPC Class 1 Gen 2; EPC Gen2 V2 |
| Operating Frequency: | FCC (902-928 MHz) |
| Antenna Type: | Zebra Proprietary Antenna |
| Max Read Distance: | 12.2 m (40 ft) |
| Scanner: | SE4710 1D/2D Imager |
| Operating System: | Android 13, 14, and 16 |
| Data Interface: | USB 3.1 Type C, Wi-Fi 6, Bluetooth 5.2 |
| Memory: | 6 GB RAM/64 GB Flash Memory |
| Power Source: | Quick-Release, PowerPrecision Li-Ion 7000 mAh Battery |
| Front Camera: | 5 MP |
| Forward Camera: | 16 MP |
| MECHANICAL: | |
| Dimensions: | 145 x 84 x 177 mm (5.7 x 3.3 x 6.96 in) |
| Weight: | 0.569 kg (1.25 lbs) |
| ENVIRONMENT: | |
| IP Rating: | IP 65 |
| Operating Temperature: | -10°C to 50°C (14°F to 122°F) |
| APPLICATION INTERFACE: | |
| Host API: | Not Published |
| Demo Software: | 123RFID |
