Description

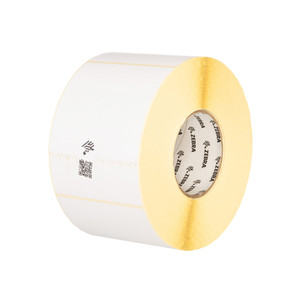

Zebra 1.84" x 1.25" Z-Perform 2000D General Purpose RFID Label | For Industrial Printers | Case of 4 Rolls - 3,500 Labels per Roll
Offering an economical choice for 2" wide labeling applications, the blank paper labels come standard with the Tageos EOS-261 inlay and Impinj M730 integrated circuit.
Data Sheet — Zebra 1.84" x 1.25" Z-Perform 2000D General Purpose RFID Label | For Industrial Printers | Case of 4 Rolls - 3,500 Labels per Roll
Need help selecting the right tag? Check out our tag guide.
Why buy this tag?
Part of the RFID Value Range, the Zebra 1.84" x 1.25" Z-Perform 2000D General Purpose RFID Label is an excellent starting point for new RFID proof of concepts. This RFID label meets the majority of the Auburn specifications for retail use and has been certified in the following categories: F, O, Q, R, W5, W6, and Y2.
Features
- General purpose RFID label with all-temp adhesive.
- Works on most non-metallic surfaces, such as plastic and corrugate.
- Z-Perform 2000D direct thermal material.
- Case of 4 rolls, 3,500 labels per roll.
- 1.84"x 1.25" Label.
- Tageos EOS-261 Inlay equipped with the Impinj M730 chip.
- 76.2 mm (3 in) core, 203.2 mm (8 in) outer diameter.
- Designed for use with industrial printers.
- Typical applications include labeling of case, pallet, freight, and assets.
Compatibility
- Zebra R110Xi4 Industrial RFID Series Printers
- Zebra ZE500R RFID Series Printers
- Zebra ZT411 RFID Printers
- Zebra ZT610 RFID Printers
| Product Type: | Tag |
|---|---|
| ELECTRICAL: | |
| Air Interface Protocol: | EPCglobal UHF Class 1 Gen 2v2 (ISO/IEC 18000-63) |
| Operating Frequency: | Global (865-928 MHz) |
| IC Type: | Impinj M730 |
| Memory: | EPC 128 Bits, TID 96 Bits, User 0 Bits |
| EPC Memory Content: | Not Guaranteed Unique |
| Max Read Distance: | Testing Recommended |
| Applicable Surface Materials: | Non-Metallic Surfaces Including Plastic, Cardboard, Glass, PVC, and Rubber |
| ARC Approved Categories: | F, O, Q, R, W5, W6, Y2 |
| MECHANICAL: | |
| Tag Form Factor: | Label Tag |
| Tag Materials: | Z-Perform 2000D |
| Recommended Ribbon: | Not Published |
| Attachment Method: | Permanent Adhesive |
| Dimensions: | 46.8 x 31.8 mm (1.84 x 1.25 in) |
| ENVIRONMENT: | |
| Operating Temperature: | -40° to +85°C (-40° to +185°F) |
