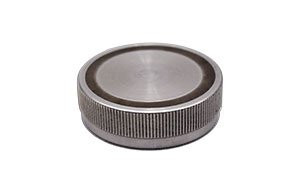

Xerafy Xplorer Downhole RFID Tag
Xerafy Xplorer Downhole RFID Tag
Xerafy Xplorer Downhole RFID Tags are designed for applications that require a quick “snap in” attachment that is secure and will not become loose during the downhole operation. These tags have been tested and validated for survivability and performance under the extreme conditions of pressure, vibration, temperature, and chemicals of a well.
Data Sheet — Xerafy Xplorer Downhole RFID Tag
Quick Start Guide — Xerafy Xplorer Downhole RFID Tag
Need help selecting the right tag? Check out our tag guide.
Why buy this tag?
Constructed with a breakthrough RF design and high strength steel, Xerafy Xplorer Downhole RFID Tags meet the rigors required for a downhole tag solution.
Features
- Withstands high pressure and vibration.
- Quick snap in attachment.
- Unique RF design.
- IP 68, IP 69K.
- Superior high-temperature and chemical corrosion resistance.
- Common applications: onshore and offshore oil pipes management and downhole assets tracking.
| ELECTRICAL: | |
|---|---|
| Air Interface Protocol: | EPCglobal UHF Class 1 Gen 2 (ISO 18000-6C) |
| Operating Frequency: | FCC (902-928 MHz), ETSI (865-868 MHz) |
| IC Type: | Alien Higgs 3 |
| Memory: | EPC 96 bits, User 512 bits, TID 64 bits |
| EPC Memory Content: | Unique, randomized number |
| Max Read Distance - Handheld: | Up to 1 m (3.28 ft) |
| Max Read Distance - Fixed: | Up to 1.5 m (4.92 ft) |
| Applicable Surface Materials: | Metallic surfaces |
| MECHANICAL: | |
| Tag Form Factor: | Hard tag |
| Tag Materials: | Stainless steel 304 |
| Attachment Method: | Snap in, embedded |
| Dimensions: | ø 1.11 x 0.33 in (ø 28.3 x 8.5 mm) |
| Weight: | 25.4 g |
| ENVIRONMENT: | |
| Operating Temperature: | -40° to +85°C (-40° to +185°F) |
