Kathrein ARU 3560 Integrated UHF RFID Reader
Product Description

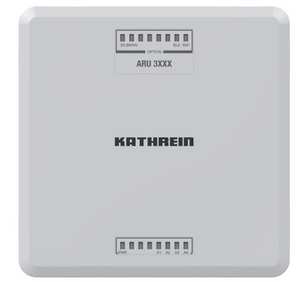

Kathrein ARU 3560 Integrated UHF RFID Reader
The Kathrein ARU 3560 Integrated UHF RFID Reader is the best-in-class 33-dBm UHF RF unit. Optional connectivity modules for the ARU 3560 include PoE+, Wi-Fi, and 3G mobile interface. Based on the latest RFID standards, such as EPC Gen2v2 / ISO 18000-63, the Kathrein ARU 3560 Integrated UHF RFID Reader supports all market-leading transponder chip features for security, authentication, and encoding.
Data Sheet — Kathrein ARU 3560 Integrated UHF RFID Reader
Need help selecting the right reader? Check out our reader guide.
What's included?
- Kathrein ARU 3560 Integrated UHF RFID Reader Unit
- Power Adapter
- Power Supply
Why buy this reader?
The Kathrein ARU 3560 Integrated UHF RFID Reader is the next generation of RFID readers with an integrated 65° wide-range antenna. It is the first choice for professional IoT solutions, such as industrial automation and vehicle identification in rugged environments.
Features
- 50 ohm impedance antenna port.
- 65° half-power beam width.
- Linux operating system.
- IP67 rated.
- ARMv7-A based processor, 2 cores @ 800 MHz.
- GPIO: 4 Inputs, 4 Outputs.
- Common applications: logistics, industry automation, vehicle identification, and smart city applications.
Specifications
ELECTRICAL:
Air Interface Protocol:
EPC Gen2v2 (ISO 18000-63)
Operating Frequency:
FCC (902-928 MHz), ETSI (865-868 MHz)
Transmit Power:
30 dBm (FCC), 33 dBm (ETSI)
Max Receive Sensitivity:
-80 dBm
Max Read Distance:
Up to 20 m (65.61 ft)
Max Read Rate:
Not published
Data Interface:
Ethernet 10/100, Wi-Fi, Bluetooth
GPIO:
4 Digital Inputs; 4 Digital Outputs
Power Source:
Power Adapter and Cord
MECHANICAL:
Antenna Ports:
3 RP-TNC female ports (connects to RP-TNC male)
Dimensions:
300 x 300 x 71 mm (11.8 x 11.8 x 2.7 in)
Weight:
4.26 kg (9.39 lbs)
ENVIRONMENT:
IP Rating:
IP 67
Operating Temperature:
-20° to +55°C (-4° to 131°F)
APPLICATION INTERFACE:
Host API:
C, C++
Demo Software:
ReaderStart V3
