Description

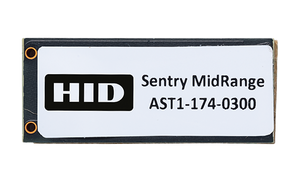

HID Sentry MidRange UHF RFID Tag | M750
HID Sentry tags are compact, low-profile RFID tags designed for exceptional durability and performance, even in harsh environments. IP68 rated for protection against water and dust, HID Sentry tags are also built to resist impacts, vibrations, extreme temperatures, and chemicals. Built on a printed circuit board platform with a rugged fiber-reinforced core, these tags offer reliable read range and cost-effectiveness—making them a versatile solution for demanding RFID applications. The Sentry MidRange features the longest read range in the Sentry family of 10 m (33 ft), enabling tracking small assets that pass through wide dock doors and are stored in large spaces.
Data Sheet — HID Sentry MidRange UHF RFID Tag | M750
Need help selecting the right tag? Check out our tag guide.
Why buy this tag?
Featuring the longest read range in the Sentry family, the Sentry MidRange is perfect for challenging environments where assets remain far from the antenna.
Features
- Low profile 5.6 mm (0.22 in) tag.
- High temperature and chemical resistant.
- Equipped with Impinj M750 IC.
- IP 68 rated.
- Optimized for metal surfaces.
- Deployable in harsh industrial environments.
- Common applications: surgical instrument tracking, tool tracking, weapons management, rental asset tracking, and IT asset management.
| Product Type: | Tag |
|---|---|
| ELECTRICAL: | |
| Air Interface Protocol: | EPCglobal UHF Class 1 Gen 2 (ISO 18000-6C) |
| Operating Frequency: | FCC (902-928 MHz), ETSI (865-868 MHz) |
| IC Type: | Impinj M750 |
| Memory: | EPC 96 bits, User 32 bits, TID 96 bits |
| EPC Memory Content: | Not Guaranteed Unique |
| Max Read Distance: | Up to 10 m (33 ft) |
| Applicable Surface Materials: | Metal Surfaces |
| MECHANICAL: | |
| Tag Form Factor: | Hard Tag |
| Tag Materials: | PCB |
| Attachment Method: | Adhesive Sticker |
| Dimensions: | 38.6 x 17 x 5.6 mm (1.52 x 0.67 x 0.22 in) |
| Weight: | 6.4 g |
| ENVIRONMENT: | |
| Operating Temperature: | -50° to +85°C (-58° to +185°F) |
| Maximum Temperature Exposure: | -50° to +185°C (-58° to +365°F) |
