HID

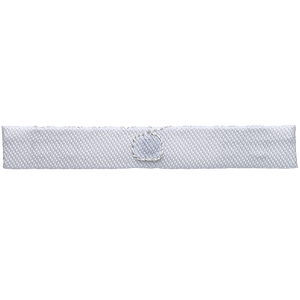

HID LinTRAK C10-MRI UHF RFID Laundry Tag (Monza R6-P)

SKU:
TLR6PE06

Contact Us for Pricing

ELECTRICAL:

Air Interface Protocol:
EPC global UHF Class 1 Gen 2 (ISO 18000-63)
Operating Frequency:
Global (860-960 MHz)
IC Type:
Monza R6-P
Memory:
EPC 96 bits (up to 128 bits)
EPC Memory Content:
Unique
Max Read Distance:
Up to 5 m (16 ft)
Applicable Surface Materials:
Textiles, garments, linens
MECHANICAL:

Tag Form Factor:
Soft tag
Tag Materials:
Multi threads woven stainless steel, polyester, epoxy
Attachment Method:
Sewn into hem or pouch
Dimensions:
66 x 10 mm (2.6 x 0.4 in)
Weight:
< 1 g
ENVIRONMENT:

Max Temperature Exposure:
220°C (428°F) for 30 seconds
Washing Cycles:
200 cycles, or 3 years

Frequently Bought Together

Please choose options for all selected products

Description

HID LinTRAK C10-MRI UHF RFID Laundry Tag (Monza R6-P)

HID LinTRAK C10-MRI UHF RFID Laundry Tags are made of a fabric label embedded with an ultra-small UHF device coupled to a sewed-thread antenna. LinTRAK C10-MRI measures out to be just 66 x 10 mm. Discreet and unobtrusive, it can be seamlessly inserted in the hems of textile items to enable fast identification and automated counts, individually or in bulk quantities. LinTRAK C10-MRI tags are robust and designed to endure typical industrial laundry processes, such as washing, drying, and ironing. LinTRAK C10-MRI tags are MR conditional and can be used in all types of magnetic resonance (MRI) systems found in medical environments.

Data Sheet  HID LinTRAK C10-MRI UHF RFID Laundry Tag (Monza R6-P)


Why buy this tag?

The LinTRAK C10-MRI UHF RFID Laundry Tag is the smallest in width of the LinTRAK tag family. This tag is discreet and non-obtrusive and can be seamlessly inserted in the hems of textile items like linen, pillowcases, and table cloths. MR (magnetic resonance) compliant, it can be used in all types of MRI systems found inside medical environments and applications.

Features

  • Slim, discreet, and non-obtrusive.
  • Smallest width of the tags in the LinTRAK UHF tag family.
  • The right size for hem insertion.
  • Robust resistance to typical laundry environments.
  • Excellent read performance.
  • OEKO-TEX® Standard 100 Level 1 certified.
  • Can withstand 200 cycles or 3 years.

Product Details

ELECTRICAL:

Air Interface Protocol:
EPC global UHF Class 1 Gen 2 (ISO 18000-63)
Operating Frequency:
Global (860-960 MHz)
IC Type:
Monza R6-P
Memory:
EPC 96 bits (up to 128 bits)
EPC Memory Content:
Unique
Max Read Distance:
Up to 5 m (16 ft)
Applicable Surface Materials:
Textiles, garments, linens
MECHANICAL:

Tag Form Factor:
Soft tag
Tag Materials:
Multi threads woven stainless steel, polyester, epoxy
Attachment Method:
Sewn into hem or pouch
Dimensions:
66 x 10 mm (2.6 x 0.4 in)
Weight:
< 1 g
ENVIRONMENT:

Max Temperature Exposure:
220°C (428°F) for 30 seconds
Washing Cycles:
200 cycles, or 3 years
