Description
*Formerly sold under the brand Confidex. This is the same great tag - just with a new name.*
*This product is reaching end-of-life and will soon be discontinued. Visit Beontag Ironside Classic RFID Tag | M780 for a recommended replacement product.

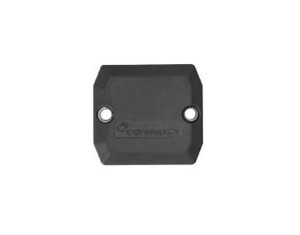

Beontag Ironside Classic RFID Tag (Monza R6-P)
Beontag Ironside Classic RFID Tags enable several on-metal identification challenges to be solved, which were earlier impossible with passive RFID. These tags can be mounted easily on metallic surfaces either mechanically with screws or pop rivets or with industrial adhesive. For a superior grip, Beontag also offers a welding bracket for these tags, which can be used when spot welding the tag onto the surface. Ironside Classic tags are built to withstand harsh conditions, including submersion in water, tropical climates, and mechanical impacts. They are widely used for tracking assets ranging from steel pallets to train wagons.
Data Sheet — Beontag Ironside Classic RFID Tag (Monza R6-P)
![Data Sheet — Beontag Ironside Classic RFID Tag (Monza R6-P)](https://cdn11.bigcommerce.com/s-ka7ofex/product_images/uploaded_images/button-viewdatasheet2.png" "Data Sheet — Beontag Ironside Classic RFID Tag (Monza R6-P)"){kind=small}
Need help selecting the right tag? Check out our tag guide.
Why buy this tag?
Beontag Ironside Classic RFID Tags offer a benchmark combination of ruggedness, read range, and low cost.
Features
- Metal-mount RFID tag.
- Impact-resistant.
- IP 68 rated.
- One of the most durable tags for challenging industrial asset management applications.
| Product Type: | Tag |
|---|---|
| ELECTRICAL: | |
| Air Interface Protocol: | EPCglobal UHF Class 1 Gen 2v2 |
| Operating Frequency: | FCC (902-928 MHz), ETSI (865-869 MHz) |
| IC Type: | Impinj Monza R6-P |
| Memory: | EPC 96/128 bit, User 32/64 bit, TID 96 bit |
| EPC Memory Content: | Unique, randomized number encoded as a default |
| Max Read Distance - US: | Up to 15 m (50 ft) - On metal, Up to 7 m (23 ft) - On Plastic |
| Max Read Distance - EU: | Up to 15 m (50 ft) - On Metal, Up to 5 m (16 ft) - On Plastic |
| Applicable Surface Materials: | Ideally on metal, works on most materials |
| MECHANICAL: | |
| Tag Form Factor: | Hard tag |
| Tag Materials: | High quality engineering plastics (surface thermoplastic elastomer) |
| Attachment Method: | Acrylic adhesive, screw, pop rivets, welding |
| Dimensions: | 51.5 x 47.5 x 10 mm (2.03 x 1.87 x 0.39 in) |
| Weight: | 22 g |
| ENVIRONMENT: | |
| Operating Temperature: | -40° to +85°C (-40° to +185°F) |
