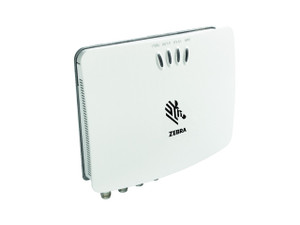

Zebra FX7500 Fixed RFID Reader | 2-Port
When your business needs precise RFID tracking for smaller coverage areas or cost-effective deployments, the Zebra FX7500 Fixed RFID Reader | 2-Port introduces advanced Zebra-designed RFID radio technology for faster, more accurate read rates and more consistent performance even in challenging environments. The new radio is paired with a more flexible Linux-based network architecture that integrates the tools and open-standard interfaces needed for fast, easy deployment with RFID and back-end applications, delivering peak performance at all times with excellent reader sensitivity and better interference rejection at a lower cost per read point.
Available with an internal USB Host port that supports Wi-Fi/Bluetooth dongles for direct wireless connectivity to your network without hard-wired access point connections, the 2-port FX7500 eliminates deployment challenges with integrated Power over Ethernet (PoE) and snap-in mounting brackets. Zebra also offers a configuration that excludes the internal Host USB port but provides the same features and functionality using an external USB hub for wireless communications and firmware updates, giving you deployment flexibility for focused read zones in warehouses, retail checkpoints, or manufacturing workstations.
Configuration Options
Additional configuration options are available to meet your needs. Contact Us today for more information.
Data Sheet — Zebra FX7500 Fixed RFID Reader | 2-Port
Get expert help selecting the right RFID reader. Check out our reader guide or chat with a specialist.
What's included?
- Zebra FX7500 Fixed RFID Reader | 2-Port Unit
- One Year Standard Warranty (Three Year Comprehensive Warranty Available)
- AC Power Adapter, if selected above (Please note that using a non-manufacturer approved power supply voids the warranty)
Why buy this reader?
The FX7500 2-Port delivers enterprise-grade performance with 1200+ tags per second while offering the cost efficiency of dual antenna ports for precise coverage areas. Its integrated PoE capability and Linux platform provide professional-grade deployment flexibility without the complexity of larger multi-port systems.
Features
- Performance Specs: Up to 1200+ tags/sec read rate with -82 dBm receive sensitivity
- Antenna Configuration: 2 mono-static antenna ports with reverse polarity TNC connectors
- High Performance Radio: Next-generation technology with superior interference rejection and echo cancellation
- Power Options: Integrated PoE, PoE+, or +24V DC with 12V-48VDC operation support
- Connectivity: 10/100 BaseT Ethernet, USB client/host ports with optional Wi-Fi and Bluetooth
- Dimensions: 196 x 150 x 43 mm (7.7 x 5.9 x 1.7 in), weighing 0.86 kg (1.9 lbs)
- Operating System: Linux with 512 MB Flash and 256 MB RAM for third-party applications
- Environmental Rating: -20° to +55°C operating temperature with plenum area certification
- Standards Compliance: FCC, ETSI EN 302 208, EPC Gen2, ISO 18000-6C, IPv6, and FIPS-140
- Management Tools: MotionWorks Enterprise RFID Reader Management and IoT Connector included
- Security Features: Transport Layer Security 1.2, FIPS-140 compliance, and optically isolated GPIO
- Mounting: Keyhole and standard VESA (75mm x 75mm) with snap-in bracket system
- Ideal For: Focused read zones, retail checkpoints, small warehouses, and targeted manufacturing applications
Zebra OneCare Support with Comprehensive Coverage
Zebra OneCare Essential delivers the fully featured comprehensive coverage you need to maximize uptime and value of your Zebra device. This service sets the industry bar for service and support, with features that include coverage for accidental damage and normal wear and tear, technical support during your local business hours, access to software updates, and a 3-day turnaround time on repairs.
NOTE: This service is available for purchase within 30 days of your equipment purchase. Purchase of any Zebra OneCare Support Service voids the included standard one-year warranty, resulting in a coverage of three (3) years total. Contact us today for more detailed information.
Recommended Professional Services
At atlasRFIDstore, we offer a full range of professional services to ensure that your RFID hardware runs at it's optimal capacity. Designed specifically for RFID readers, the following professional services will reduce the amount of time it takes to get your reader ready for use.
- Reader Setup and Configuration Service | Remote Assistance Post-Shipment
- Middleware, Firmware, or License Installation Service | Pre-Shipment
- Middleware Configuration Service | Pre-Shipment
Video
| Product Type: | Fixed Reader |
|---|---|
| ELECTRICAL: | |
| Air Interface Protocol: | EPCglobal UHF Class 1 Gen 2 (ISO 18000-6C) |
| Operating Frequency: | FCC (902-928 MHz) |
| Transmit Power: | +31.5 dBm |
| Max Receive Sensitivity: | -82 dBm |
| Max Read Distance: | Not published |
| Max Read Rate: | Up to 1200+ tags in FMO or Dense Reader Mode |
| Data Interface: | Ethernet with POE support |
| GPIO: | 2 inputs, 3 outputs, optically isolated |
| Power Source: | Power Supply if selected or POE |
| MECHANICAL: | |
| Antenna Ports: | 2 monostatic ports (RP-TNC female) (connects to RP-TNC male) |
| Dimensions: | 195.6 x 149.9 x 43.2 mm (7.7 x 5.9 x 1.7 in) |
| Weight: | 0.86 kg (1.9 lbs) |
| ENVIRONMENT: | |
| IP Rating: | IP 53 |
| Operating Temperature: | -20° to +55°C (-4° to +131°F) |
| APPLICATION INTERFACE: | |
| Host API: | C#, .NET |
| Demo Software: | PowerSession |
