Zebra Technologies

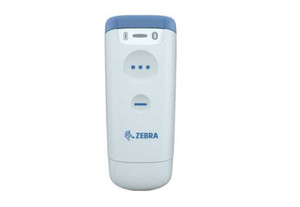

Zebra CS6080-HC Cordless Companion Scanner for Healthcare

SKU:
CS6080-HC4F00BVZWW
$800.00
ELECTRICAL:

Scanner:
Area imager
Data Interface:
USB, Bluetooth
Power Source:
745 mAh Lithium polymer battery
SCAN PERFORMANCE:

Scan Mode:
Handheld trigger or presentation
Scan Pattern:
Not published
Sensor Resolution:
1280 x 960 pixels
Imager Field of View:
Horizontal: 45°, Vertical: 34°
Minimum Print Contrast:
20% minimum reflective difference
1D Decode Capabilities:
Base 32 (Italian Pharma), Codabar/NW7, Code 11, Code 39, Code 93, Code 128, GS1 DataBar, I 2 of 5, Korean 3 of 5, MSI Plessey, UPC/EAN
2D Decode Capabilities:
Aztec, Composite Codes, DataMatrix, Dotted Data Matrix, DotCode, Han Xin, MaxiCode, PFD417, Micro PDF417, Postal Codes, QR Code, Micro QR, TLC-39, SecurPharm
OCR Decode Capabilities:
OCR-A, OCR-B, MICR, US Currency
Laser Classification:
Circular 525nm true green LED
MECHANICAL:

Dimensions:
23 x 46 x 109 mm (0.9 x 1.8 x 4.3 in)
Weight:
0.087 kg (0.19 lbs)
Color:
Healthcare white
ENVIRONMENT:

Drop Specification:
Withstands multiple 1.8 m (6 ft) drops to concrete
IP Rating:
IP 65
Operating Temperature:
0° to 50°C (32° to 122°F)
fbt-product:
3492
fbt-product:
1724
fbt-product:
3700
atc-product:
3695
atc-product:
3523
atc-product:
2960
atc-product:
3406

Frequently Bought Together

Please choose options for all selected products

  • Choose Options

Description

Zebra CS6080-HC Cordless Companion Scanner for Healthcare

Designed specifically for healthcare environments, the Zebra CS6080-HC Cordless Companion Scanner adapts to any clinician workflow. With a high-resolution megapixel sensor and Zebra's exclusive PRZM Intelligent Imaging technology, the CS6080-HC easily and accurately captures the many kinds of barcodes commonly used in hospitals including barcodes on patient wristbands, medication vials, IV bags, and specimen trays. The CS6080-HC comes standard with a wide array of easily controllable feedback modes designed for virtually any hospital environment. A second programmable button lets users seamlessly toggle between two host applications. Healthcare staff can choose between haptic/vibration, a good decode LED, a traditional beep tone with adjustable volume and frequency, and Zebra’s Direct Decode Indicator that projects the illumination on the barcode to confirm that it has been captured. In Night Mode, a quick press of the trigger toggles between an audible beep and vibration. Clinicians can be confident that a medicine, specimen, or IV bag was properly scanned — without disturbing patients or interrupting the workflow to look at the scanner. Offering maximum protection against the spread of bacteria, the CS6080-HC is manufactured with special plastics, IP 65 sealing, and seamless crevice-free construction to allow for safe wipe-downs with the widest selections of aggressive disinfectants used in hospitals today.

NOTE: The CS6080-HS Scanner is unavailable with UHF RFID technology. This scanner reads 1D and 2D barcodes, but does not have UHF capabilities.

Configuration Options

Additional configuration options are available to meet your needs. Contact Us today for more information.

Data Sheet  Zebra CS6080-HC Cordless Companion Scanner for Healthcare


What's included?

  • Zebra CS6080-HC Cordless Companion Scanner for Healthcare Unit
  • Three Year Standard Manufacturer Warranty
  • Note: USB Cable and Cart Mountable Presentation Communication/Charge Cradle NOT included (Please note that using a non-manufacturer approved power supply voids the warranty.)

If kit is selected above:

  • Zebra CS6080-HC Cordless Companion Scanner for Healthcare Unit
  • Three Year Standard Manufacturer Warranty - Scanner Only
  • 7 ft USB-C to USB-A Cable
  • Cart Mountable Presentation Communication/Charge Cradle

Why buy this scanner?

The ultra-versatile Zebra CS6080-HC Cordless Companion Scanner provides clinicians with the tools they need to improve patient outcomes, increase productivity, and streamline everyday processes. This scanner can be tucked in a scrub pocket or worn on a lanyard and is designed to fit naturally in the hand for easy scanning.

Features

  • Purpose built for healthcare environments.
  • Compact scanner that provides reliable scanning performance.
  • Convertible design adapts to multiple clinical workflows.
  • Special plastics and IP 65 sealing that allows for safe wipe-downs with a wide selection of aggressive disinfectants.
  • Built-in light doubles as a workstation lamp.
  • Equipped with a highly visible and safe LED aimer that can be used in the NICU, labor and deliver, and mother-baby units.
  • Effortless multi-tasking with second programmable button that can be used to instantly toggle between two host applications.
  • Built-in virtual tether functionality.
  • Flexible feedback modes - including night mode with vibrate.
  • With built-in NFC, this device easily pairs with other devices and in-room workstations - no IT support required.
  • Small enough to meet any nurse-carry workflow.
  • Vibration motor.
  • Certified compliant with FIPS 140-2.
  • Cutting edge mobility with Qi inductive charging.
  • Common applications: healthcare.

Zebra OneCare Support with Comprehensive Coverage

Zebra OneCare Essential delivers the fully featured comprehensive coverage you need to maximize uptime and value of your Zebra device. This service sets the industry bar for service and support, with features that include coverage for accidental damage and normal wear and tear, technical support during your local business hours, access to software updates, and a 3-day turnaround time on repairs.

NOTE: This service is available for purchase within 30 days of your equipment purchase. Purchase of any Zebra OneCare Support Service voids the included standard warranty, resulting in a coverage of three (3) years total. Contact us today for more detailed information.


Recommended Accessories

The following accessories are available for the Zebra CS6080-HC Cordless Companion Scanner for Healthcare. Contact us today for more detailed information on these accessories.

  • Zebra 1-Slot Device + Spare Battery Charge/Communication Cradle
  • Zebra 1-Slot Spare Battery Charge Cup
  • Zebra 4-Slot Charge-Only Cradle Kit
  • Zebra 4-Slot Charge-Only Cradle Adapter Cup
  • Zebra 4-Slot Spare Battery Charge Kit
  • Zebra 5-Slot ShareCradle Mounting Bracket
  • Zebra Healthcare Cart Mountable Presentation Communication/Charge Cradle
  • Zebra Gooseneck Stand with a Standard Base (Black Color)
  • Zebra Gooseneck Stand with Standard Base (Healthcare White Color)
  • Zebra Gooseneck Stand with Weighted Bae (Black Color)
  • Zebra Gooseneck Stand with Weighted Base (Healthcare White Color)
  • Zebra Stand Cup (Black Color)
  • Zebra Stand Cup (Healthcare White Color)
  • Zebra VESA Mounting Bracket for CS60 Healthcare Cradle, Front Facing - Up to 25" Monitor Size
  • Zebra VESA Mounting Bracket for CS60 Healthcare Cradle, Side Facing - Up to 25" Monitor Size
  • Zebra VESA Mounting Bracket for CS60 Healthcare Cradle, Side Facing - Up to 32" Monitor Size
  • Zebra Silicon Case
  • Zebra Neck Cord Lanyard
  • Zebra Spare/Replacement Magnetic Retractor
  • Zebra Spare Batteries
  • Zebra USB Cables
  • Zebra Regional Power Supplies

Product Details

ELECTRICAL:

Scanner:
Area imager
Data Interface:
USB, Bluetooth
Power Source:
745 mAh Lithium polymer battery
SCAN PERFORMANCE:

Scan Mode:
Handheld trigger or presentation
Scan Pattern:
Not published
Sensor Resolution:
1280 x 960 pixels
Imager Field of View:
Horizontal: 45°, Vertical: 34°
Minimum Print Contrast:
20% minimum reflective difference
1D Decode Capabilities:
Base 32 (Italian Pharma), Codabar/NW7, Code 11, Code 39, Code 93, Code 128, GS1 DataBar, I 2 of 5, Korean 3 of 5, MSI Plessey, UPC/EAN
2D Decode Capabilities:
Aztec, Composite Codes, DataMatrix, Dotted Data Matrix, DotCode, Han Xin, MaxiCode, PFD417, Micro PDF417, Postal Codes, QR Code, Micro QR, TLC-39, SecurPharm
OCR Decode Capabilities:
OCR-A, OCR-B, MICR, US Currency
Laser Classification:
Circular 525nm true green LED
MECHANICAL:

Dimensions:
23 x 46 x 109 mm (0.9 x 1.8 x 4.3 in)
Weight:
0.087 kg (0.19 lbs)
Color:
Healthcare white
ENVIRONMENT:

Drop Specification:
Withstands multiple 1.8 m (6 ft) drops to concrete
IP Rating:
IP 65
Operating Temperature:
0° to 50°C (32° to 122°F)
