Product Details

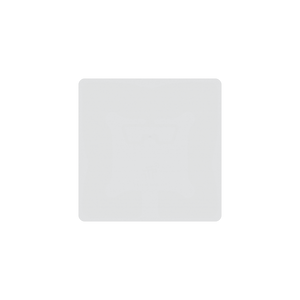

Vulcan RFID Label 2.09" x 2.09" - with Tageos EOS-340 Inlay (M730)
These blank Vulcan RFID labels provide long read ranges regardless of label orientation, making them ideal for applications where placement of the label cannot be controlled or may vary, such as logistics and retail. Manufactured to ensure optimum performance, these square 2.09" x 2.09" thermal transfer labels come standard with the Tageos EOS-340 inlay and Impinj M730 integrated circuit. With a PET substrate rather than paper, this inlay exhibits a heightened durability allowing it to last longer. This label is well suited for inventory management applications, and the M730 IC enables fast inventory reads, even in dense RFID tag populations. Retailers and brand owners can deploy these Vulcan RFID labels globally, as they comply with frequency regulations set up in the US (FCC), EU (ETSI), and Asia.
View Vulcan RFID™ Label with EOS-340 Inlay DatasheetNeed help selecting the right tag? Check out our tag guide.
Why buy this tag?
With a PET substrate rather than paper, this inlay exhibits a heightened durability allowing it to last longer. These labels can be read regardless of label orientation, offering reliable and fast logistics even in challenging environments. These blank 2.09" x 2.09" RFID labels are designed for use in printers under the assumption that the customer will do the printing and encoding.
Features
- Worldwide operation in all RFID UHF bands (860-960 MHz).
- ISO/IEC 18000-6C compliance.
- Thermal transfer, smooth film label without perforation between labels.
- 3 in (76.2 mm) core.
- Common applications: inventory visibility, item level tagging, parts management, and supply chain management.
Product Specs
| Product Type: | Tag |
|---|---|
| Air Interface Protocol: | EPCglobal UHF Class 1 Gen 2 (ISO 18000-6C) |
| Operating Frequency: | Global (860-960 MHz) |
| IC Type: | Impinj M730 |
| Memory: | EPC 128 Bits, TID 96 Bits, User 0 Bits |
| EPC Memory Content: | Not Guaranteed Unique |
| Max Read Distance: | Testing Recommended |
| Applicable Surface Materials: | Glass, Plastic, Wood, Cardboard |
| Tag Form Factor: | White Wet Label Tag, No Perforation |
| Tag Materials: | Printable White Film (Thermal Transfer) |
| Recommended Ribbon: | Wax Resin Ribbon |
| Attachment Method: | General Purpose Permanent Acrylic Based Adhesive |
| Dimensions: | 53 x 53 mm (2.09 x 2.09 in) |
| Weight: | 1 g |
| Operating Temperature: | -40° to +85°C (-40° to +185°F) |
