SLS® M-100/M-101 Wearable RFID Reader

SKU:
1000M100

Contact Us for Availability

ELECTRICAL:

Air Interface Protocol:
EPC UHF Class 1 Gen2 (ISO 18000-63)
Operating Frequency:
UHF (865-928 MHz), region dependent
Antenna type:
Integrated patch antenna
Max Read Distance:
Up to 60 cm (24 in)
Scanner:
RFID only
Operating system:
Android, iOS (API/SDK Version), Android, iOS, Linux, OSX, Windows (Bluetooth Keyboard Emulation Version)
Data Interface:
USB-C, BLE (Bluetooth 4.2)
Memory/Expansion memory:
N/A
Power Source:
USB 5V
Camera:
N/A
MECHANICAL:

Dimensions:
44 x 64 x 13 mm (1.75 x 2.5 x 0.50 in)
Weight:
0.037 kg (0.08 lbs) - without wristband, 0.059 kg (0.13 lbs) - with wristband
ENVIRONMENT:

IP Rating:
IP 55
Operating Temperature:
-20° to +60°C (-4° to +122°F)
APPLICATION INTERFACE:

Host API:
Not published
Demo Software:
Not published

Frequently Bought Together

Please choose options for all selected products

  • Choose Options

Description

*Formerly sold as the SLS RFID smartLINK Mobile RFID Reader. This is the same great reader - just with a new name.*

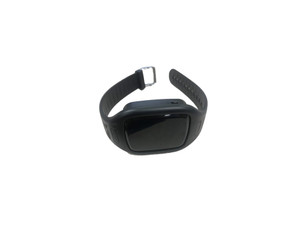

SLS® M-100/M-101 Wearable RFID Reader

The SLS® M-100/M-101 is a very versatile UHF RFID reader. This device can be used as a small form factor desktop reader, worn on the wrist, or extended on a telescoping pole. As a wristband reader, it enables hands-free inventory/cycle count while working - merchandising a retail store, packing a carton with item-level tagged assets, building a pallet of RFID-labeled cartons, etc. As a small desktop reader, the use cases are Point-of-Sale or display/demo kiosk. It also can connect to a telescopic pole for inventory on higher shelves as well as read cattle ear tags from a distance.

Data Sheet —  SLS® M-100/M-101 Wearable RFID Reader


Need help selecting the right reader? Check out our reader guide.

What's included?

  • SLS® M-100/M-101 Wearable RFID Reader Unit
  • Wristband
  • Charger

Note: Telescopic pole NOT included.

Why buy this reader?

The SLS® M-100/M-101 Wearable RFID Reader works with Android, iOS, and Windows to provide access to RFID tag data. Enabled with Bluetooth Low Energy (BLE) technology, the smartLINK offers long battery life both while in use and in standby mode.

Features

  • Long battery life.
  • Can be worn on the wrist or extended on a telescopic pole.
  • Small, compact UHF RFID reader device.
  • Enabled with Bluetooth Low Energy (BLE) technology.
  • Air interface protocol EPC UHF Class 1 Gen2 (ISO 18000-63).
  • OS Compatibility:
    • API/SDK Version: Android, iOS.
    • Bluetooth Keyboard Emulation Version: Android, iOS, Linux, OSX, Windows.

Product Details

ELECTRICAL:

Air Interface Protocol:
EPC UHF Class 1 Gen2 (ISO 18000-63)
Operating Frequency:
UHF (865-928 MHz), region dependent
Antenna type:
Integrated patch antenna
Max Read Distance:
Up to 60 cm (24 in)
Scanner:
RFID only
Operating system:
Android, iOS (API/SDK Version), Android, iOS, Linux, OSX, Windows (Bluetooth Keyboard Emulation Version)
Data Interface:
USB-C, BLE (Bluetooth 4.2)
Memory/Expansion memory:
N/A
Power Source:
USB 5V
Camera:
N/A
MECHANICAL:

Dimensions:
44 x 64 x 13 mm (1.75 x 2.5 x 0.50 in)
Weight:
0.037 kg (0.08 lbs) - without wristband, 0.059 kg (0.13 lbs) - with wristband
ENVIRONMENT:

IP Rating:
IP 55
Operating Temperature:
-20° to +60°C (-4° to +122°F)
APPLICATION INTERFACE:

Host API:
Not published
Demo Software:
Not published
