LABELMATE

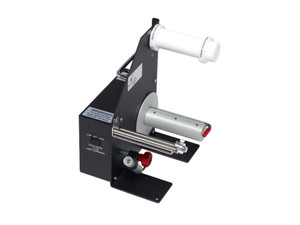

LABELMATE LD-100-U Automatic Label Dispenser

SKU:
LD-100-U
$795.00
MECHANICAL:

Label Width:
Up to 114.3 mm (4.5 in)
Label Length:
13 mm (0.5 in) - Min, Not published - Max
Roll Diameter:
Up to 218.44 mm (8.6 in)
Core Diameter:
38.1 mm (1.5 in) or larger
Weight:
6.4 kg (14 lbs)
Dimensions:
267 x 203 x 203x mm (10.5 x 8 x 8 in)

Frequently Bought Together

Please choose options for all selected products

  • Choose Options

Description

LABELMATE LD-100-U Automatic Label Dispenser

The LABELMATE LD-100-U Automatic Label Dispenser is a high-quality, easy-to-use, and durable label dispenser. Equipped with Reflective Sensor technology, the LC-100-U can easily be adjusted for any label length. As soon as a label is removed, the next label is immediately advanced. The labels are presented at the front of the machine, which is convenient for both left-handed and right-hand operators.

NOTE: The LD-100-U Dispenser is compatible for use with both RFID and barcoding labels.

Data Sheet  LABELMATE LD-100-U Automatic Label Dispenser


Quick Start Guide  LABELMATE LD-100-U Automatic Label Dispenser


What's included?

  • LABELMATE LD-100-U Automatic Label Dispenser Unit
  • Power Supply Module
  • User Manual
  • Three Year Parts & Labor Limited Warranty

Why buy this Dispenser?

The LABELMATE LD-100-U Automatic Label Dispenser peels and present labels effortlessly. The LC-100-U Dispenser presents labels at the front of the machine so that users can remove and apply them. As soon as a label is removed, the next label is immediately peeled and presented.

Features

  • Automatic label dispenser.
  • Black powder-coated steel finish.
  • Switched HI-LOW Speed.
  • Adjustable Label Sensor.
  • Designed for use with opaque and transparent labels up to 114.3 mm (4.5-in) wide.

Recommended Accessories

The following accessories are available for LABELMATE LD-100-U Automatic Label Dispenser. Contact us today for more detailed information on these accessories.

  • LABELMATE Digital Label Counter
  • LABELMATE Mobile Battery Pack & Charger
  • LABELMATE Web-Tensioning Shaft
  • LABELMATE External Start Feature
  • LABELMATE Label Roll Bracket Extension
  • LABELMATE Supply Roll Flange Plates

Product Details

MECHANICAL:

Label Width:
Up to 114.3 mm (4.5 in)
Label Length:
13 mm (0.5 in) - Min, Not published - Max
Roll Diameter:
Up to 218.44 mm (8.6 in)
Core Diameter:
38.1 mm (1.5 in) or larger
Weight:
6.4 kg (14 lbs)
Dimensions:
267 x 203 x 203x mm (10.5 x 8 x 8 in)
