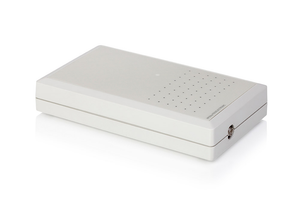

FEIG MR102-USB Mid-Range HF RFID Desktop Reader | USB Interface
The FEIG MR102-USB Mid-Range HF RFID Desktop Reader is a compact desktop RFID reader with 1 external antenna port that reads tags from up to 400 mm (15.7 in) away. The MR102-USB is a versatile desktop reader. The MR102-USB is ideal for unattended self-service stations such as self-booking stations or automatic dispensers, and the reader features an anti-collision function that enables the reader to read up to 30 transponders simultaneously.
Configuration Options
Additional configuration options are available to meet your needs. Visit FEIG MR102-PoE Mid-Range HF RFID Desktop Reader | Ethernet/PoE Interface or contact us today for more information.
Data Sheet — FEIG MR102-USB Mid-Range HF RFID Desktop Reader | USB Interface
What's included?
- FEIG MR102-USB Mid-Range HF RFID Desktop Reader | USB Interface
- One Year Standard Manufacturer Warranty
- FEIG 12V Power Supply, if selected above (Please note that using a non-manufacturer approved power supply voids the warranty)
Why buy this reader?
The FEIG MR102-USB is a compact desktop HF reader with an anti-collision function that handles dense tag populations. The MR102-USB is ideal for applications from libraries and retail to logistics and industrial sorting systems.
Features
- Sleek, compact, and lightweight design.
- Easy, low-cost deployment with communication over USB.
- 1 external SMA female antenna port.
- Transmit power of 1.2 W.
- Anti-collision function enables simultaneously reading 30 HF tags.
- Ideal applications include libraries, retail, and logistics.
| Product Type: | Fixed Reader |
|---|---|
| ELECTRICAL: | |
| Air Interface Protocol: | ISO 15693, ISO 18000-3, ISO 18000-3 |
| Operating Frequency: | HF (13.56 MHz) |
| Transmit Power: | 1.2 W |
| Max Receive Sensitvity: | Not Published |
| Max Read Distance - Internal Antenna: | Not Published |
| Max Read Distance - External Antenna: | 400 mm (15.7 in) |
| Max Read Rate: | Not Published |
| Gain: | N/A |
| Data Interface: | USB 2.0 |
| GPIO: | Not Published |
| Power Source: | 12V Power Supply |
| MECHANICAL: | |
| Antenna Ports: | 1 External SMA 50 ohm Plugs |
| Dimensions: | 145 x 85 x 27 mm (5.71 x 3.35 x 1.06 in) |
| Weight: | 0.20 kg (0.437 lbs) |
| ENVIRONMENT: | |
| IP Rating: | IP 30 |
| Operating Temperature: | -25° to 55° C (-13°F to 131°F) |
| APPLICATION INTERFACE: | |
| Host API: | Not Published |
| Demo Software: | ISO-START+ |
