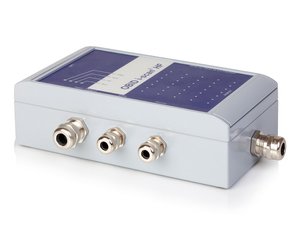

FEIG LR1002-E HF RFID Long Range Reader
The FEIG LR1002-E is a long-range 13.56 MHz HF RFID reader designed for applications that demand robust performance at an affordable price point. Supporting ISO 15693 and HF Gen 2 protocols, it is well-suited for use in retail, logistics, and industrial environments without dense tag populations. With enhanced output power beyond typical mid-range readers, it excels in scenarios such as conveyor belts, production lines, and sorting systems. Its design focuses on maximizing cost efficiency without sacrificing tag detection accuracy or system integration flexibility.
Equipped with four distinct operating modes, the LR1002-E offers advanced receiver sensitivity for a broad and consistent read zone, while its transmitter architecture provides resilience against variable cable lengths and unstable power supplies. The reader includes built-in diagnostic features for antenna mismatch detection and other troubleshooting tasks. Certified under ETSI, FCC, and IC standards, the LR1002 is engineered for reliable and scalable deployment across a wide range of RFID applications.
Configuration Options
Additional configuration options are available to meet your needs. Contact us today for more information.
Data Sheet — FEIG LR1002-E HF RFID Long Range Reader
What's included?
- FEIG LR1002-E HF RFID Long Range Reader
- One Year Standard Manufacturer Warranty
- FEIG 24V Power Supply, if selected above (Please note that using a non-manufacturer approved power supply voids the warranty)
Why buy this reader?
The LR1002-E features a high power SMA antenna connector with adjustable transmitting power between 1 W and 5 W, ideal for applications where mid-range HF readers lack read range, such as conveyor systems and production lines. The four different reader modes and multiple diagnostic tools add to its versatility and enhance its cost-efficiency.
Features
- 1 SMA female antenna port.
- Multiple communication options, such as Ethernet, USB, and RS232.
- Adjustable transmitting power from 1 W to 5 W.
- 4 different reader modes.
- Transmitter architecture protects against incorrect cable lengths and disturbed power supplies.
- 4 LEDs for operational information.
- 1 GPIO input and output.
- Ideal applications include retail, industrial manufacturing, and logistics.
| Product Type: | Fixed Reader |
|---|---|
| ELECTRICAL: | |
| Air Interface Protocol: | ISO 15693, ISO 18000-3, and HF Gen2 |
| Operating Frequency: | HF (13.56 MHz) |
| Transmit Power: | Programmable from 1 W to 5 W |
| Max Receive Sensitvity: | Not Published |
| Max Read Distance: | Not Published |
| Max Read Rate: | Not Published |
| Gain: | N/A |
| Data Interface: | USB, Ethernet, RS232 |
| GPIO: | 1 Relay Output, 1 Optocoupler Input |
| Power Source: | 24 V Power Supply |
| MECHANICAL: | |
| Antenna Ports: | 1 External SMA 50 ohm Plugs |
| Dimensions: | 255 x 135 x 65 mm (10.0 x 5.31 x 2.56 in) |
| Weight: | 1.1 kg (2.43 lbs) |
| ENVIRONMENT: | |
| IP Rating: | IP 54 |
| Operating Temperature: | -25° to 55° C (-13°F to 131°F) |
| APPLICATION INTERFACE: | |
| Host API: | Not Published |
| Demo Software: | ISO-START+ |
