Product Details

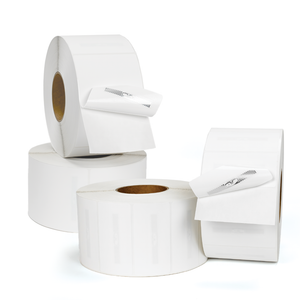

TSC 4" x 2" | 4" x 6" RFID Label - with Tageos EOS-430 Inlay | 3-Inch Core
These TSC 4" x 2" and 4" x 6" RFID Labels are designed for use in the TSC Printronix T6000 and T4000 RFID Desktop Printers. These labels are equipped with the Tageos EOS-430 Inlay and the Impinj M730 IC.
View Data SheetNeed help selecting the right tag? Check out our tag guide.
Why buy this tag?
TSC 4" x 2" and 4" x 6" RFID Labels are an affordable solution for RFID tagging using an industrial RFID printer. These tags have undergone TSC's Label Validation and in-line verification, ensuring that any rejected labels are clearly identified and not included in the final label count.
Features
- 2,750 4"x 2" or 1,000 4"x 6" blank labels – depending on selection above.
- Thermal transfer RFID label with permanent adhesive.
- Works on most non-metallic surfaces.
- Tageos EOS-430 Inlay using the Impinj M730 chip
- 76.2 mm (3 in) core.
- Typical applications include pallet labeling, distribution centers, manufacturing, transportation, and logistics
Compatibility
- TSC Printronix T4000 UHF RFID Industrial Printers
- TSC Printronix T6000e UHF RFID Industrial Printers | 4-Inch Print Width
- TSC Printronix T6000e UHF RFID Industrial Printers | 6-Inch Print Width
- TSC Printronix SL4m UHF RFID Industrial Printers
- TSC Printronix T4m UHF RFID Industrial Printers
- TSC Printronix SL500r UHF RFID Industrial Printers
- TSC Printronix T5000 UHF RFID Industrial Printers
Product Specs
| Product Type: | Tag |
|---|---|
| Air Interface Protocol: | EPCglobal UHF Class 1 Gen 2 (ISO/IEC 18000-6C) |
| Operating Frequency: | Global (865-928 MHz) |
| IC Type: | Impinj M730 |
| Memory: | EPC 128 Bits, TID 96 Bits, User 0 Bits |
| EPC Memory Content: | Not Published |
| Max Read Distance: | Testing Recommended |
| Applicable Surface Materials: | Non-Metallic Surfaces |
| Tag Form Factor: | Label Tag |
| Tag Materials: | Premium Thermal Transfer Stock |
| Recommended Ribbon: | TSC Printronix 8550-PWR Premium Wax-Resin Ribbon |
| Attachment Method: | Permanent Adhesive |
| Dimensions: | 101.6 x 50.8 mm (4 x 2 in) or 101.6 x 152.4 mm (4 x 6 in) - Depending on Selection Above |
| Weight: | 0.8 g or 2.7 g - Depending on Selection Above |
| Operating Temperature: | Not published |
